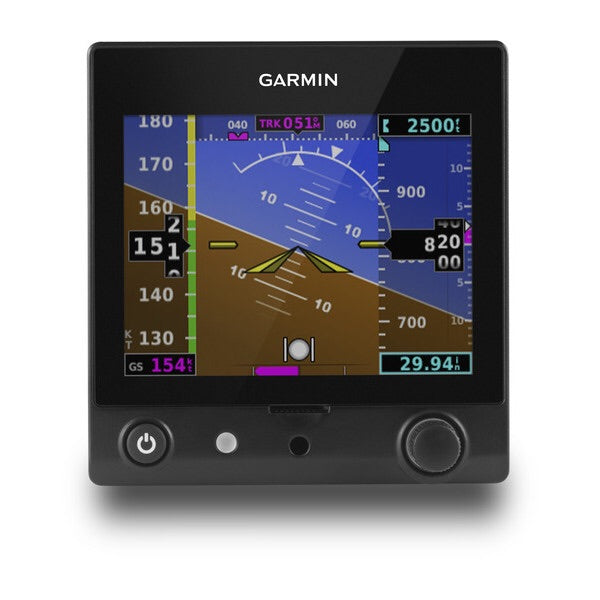

Garmin G5 Certified Electronic Flight Instrument w/LPM
No Stock. Usually ships within 1 to 2 weeks.
Add to cart for lowest price.
Comes with LPM. (Lightning Protection Module)
The STC Registration Card, which comes in a black envelope with the G5, will unlock a Garmin STC Permission Letter, Installation Manual and the rest of the STC documentation including aircraft flight manual supplement.
Glass Upgrade for Attitude Instruments in GA Aircraft
- Replaces traditional electromechanical instruments; configured in attitude and turn coordinator positions
- Bright, sunlight-readable 3.5” LCD color display, sized to fit standard 3-1/8” instrument cutout
- Certified via approved model list (AML) for STC’d installation on more than 560 aircraft makes and models
- Includes a 4-hour backup battery with battery status indicator
The G5 electronic flight instrument delivers exceptional performance, reliability and ease of installation as a drop-in replacement for primary attitude and/or directional gyros in type-certificated fixed-wing aircraft. Providing an economical upgrade path via a comprehensive approved model list (AML), the compact and cost-effective G5 is bringing modern “glass cockpit” reference to thousands of aircraft that would otherwise depend on older, vacuum-driven equipment.
Affordable Glass Solution
Designed for installation in FAR Part 23 Class 1 and Class 2 aircraft (singles and twins weighing less than 6,000 lbs), the 3.5” G5 display fits into a standard 3-1/8” round cutout, taking up just a fraction of the space and weight previously required by conventional gyro-based instruments. It’s valid for flight under VFR and IFR conditions. And, by combining visual cues and data readouts once scattered across a myriad of instruments, G5 makes flight information easier to scan — so pilots can respond more quickly and intuitively to any inflight situation.
Rock-solid Attitude Reference
When configured as a primary attitude indicator, G5 uses solid-state AHRS reference to provide smooth, steady and reliable horizon-based pitch and roll indications. In addition to aircraft attitude, G5 will also support display of airspeed, altitude, vertical speed, slip/skid, turn rate, configurable V-speed references, barometric setting and selected altitude — as well as visual alerts upon arriving at a preselected altitude. A built-in GPS receiver provides highly accurate groundspeed and ground track readouts. Plus, a dedicated rotary knob on the unit allows for easy adjustments to altitude bugs and barometric pressure settings.Learn More About G5
With supplemental type certification (STC) provided under an AML covering hundreds of certificated GA aircraft models, a G5 upgrade for your cockpit offers maximum capability and value for minimal downtime, paperwork and expense. You can select from an array of approved installation configurations incorporating single or dual G5 displays. And no matter which installation you choose, you’ll be flying with the peace of mind that comes with our industry-leading Garmin warranty backed by our No. 1-ranked product support team. See your authorized Garmin installation center for more details on the G5 glass upgrade for your aircraft.
